HFO-1234ze(Z) - Yuji America Corp - Fluorine Chemicals-Yuji America Corp – Fluorine Chemicals


New working fluid for high Temperature heat pumps and Organic Rankine Cycles applications.


Product Description

Chemical Name Cis-1,3,3,3-Tetrafluoroprop-1-ene
Synonyms HFO-1234ze(Z)
CAS # 29118-25-0
ELINCS # (EU) 826-544-6
Molecular Formula C3H2F4
Structure CF3CH=CHF(Z)
Molecular Weight 114.04
Physical State Gas
Color Colorless
Odor Odorless
ODP(CFC-11 = 1) 0
GWP100(CO2 = 1) <1
Life Time (Days) 10


Physical & Chemical Properties

Chemical Name Cis-1,3,3,3-Tetrafluoroprop-1-ene
Boiling Point(℃) 9.58
Liquid Density(@20℃) 1.219
Critical Temperature(℃) 150.12
Critical Pressure(bar) 35.33
Solubility(@25℃) 1.5
Flash Point(℃) Not applicable
Flammability(@21℃) Not applicable
Explosion Limit(%vol) Not applicable



Packing Specification

Packaging Type Packing Specification

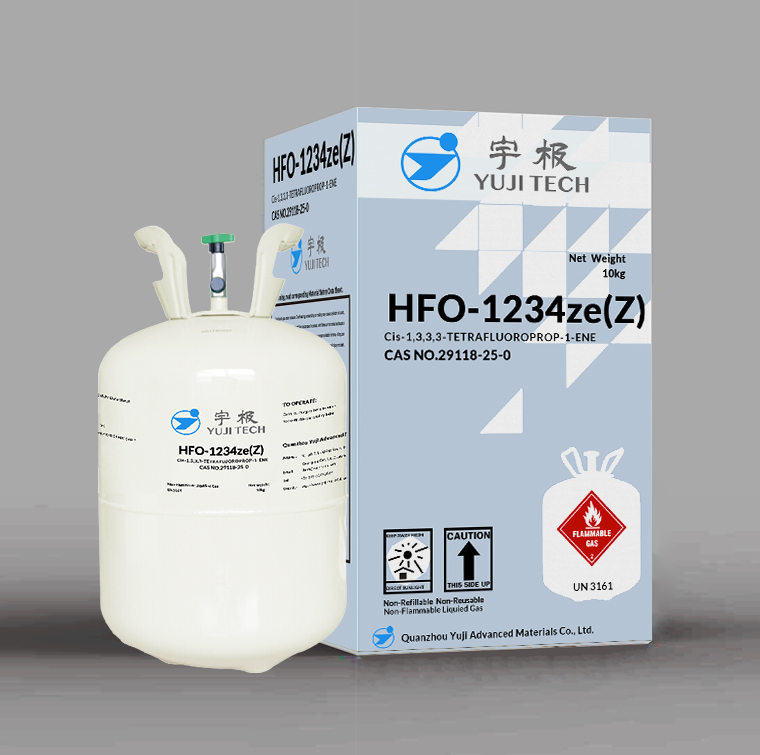

Disposable Cylinder 10kg/20kg
Refillable Cylinder 400kg/800kg/1000kg
ISO TANK 18 Tons
